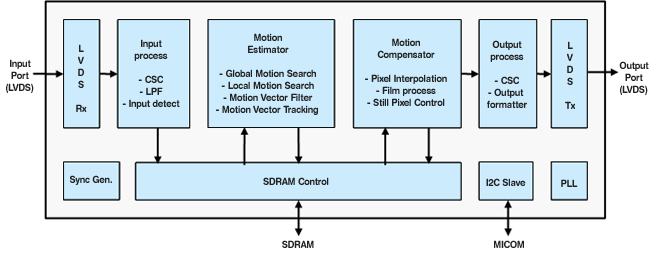

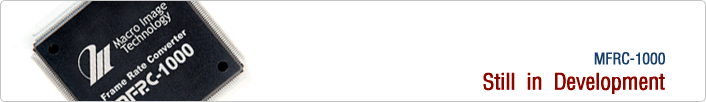

MFRC1000 is a highly integrated single chip implementation of frame rate conversion
  for SDTV and HDTV as well as PC signal using high performance motion estimation and compensation.
It converts the normal 10bit precision 50/60 Hz progressive-scanned video signal to
  100/120 Hz with true motion estimation and compensation and gets very high quality natural video signals.
Also for film source video signal it can generate very smooth inter-frames between
  original frames so finally reduce film judder.
Also MFRC1000 provides single channel LVDS receiver and dual channel LVDS
  transmitter, which are compatible with normal FPD(Flat Panel Display) interface.
Especially MFRC1000 can make the LCD TV have much more clear image by
  significantly reducing afterimage in motion pictures due to slow response time of LCD panel.
MFRC1000¡¯s high quality frame rate conversion is suitable for high quality display
  application such as flat panel display TV, scan rate converter system, especially LCD display.

MDIN-150


One single channel LVDS video input port for progressive scan video.
One dual channel LVDS video output port for progressive scan video.
Frame rate conversion with true motion estimation and compensation.
Converts 50/60Hz WXGA progressive scan video signal to 100/120 Hz.
True 10bit precision and 4:4:4 process in all data path.
Motion estimation with both deinterlaced video having motion and PC signal.
Motion estimation with pixel-level still pixel detection and processing.
Motion estimation with motion vector tracking for more naturally moving objects.
Film mode to reduce judder in film source.
Programmable brightness, contrast, hue, saturation control.

Seamless interface to one or two 64Mbit SDRAM.

MICOM interface(I2C slave).
256 HQFP package.



Input Format
  - One input port : single channel LVDS
- 8 or 10bit precision
- Maximum pixel rate : 85Mpixel/sec
- Scan type : progressive scan video up to 1368x768p @60Hz
- Video format : RGB, YCbCr(4:4:4)
Output Format
  - One output port : single/dual channel LVDS
- 8 or 10bit precision
- Maximum pixel rate : 170Mpixel/sec
- Scan type : progressive scan video up to 1368x768p @120Hz
- Video format : RGB, YCbCr(4:4:4)
Motion Estimation


- True motion search and estimation
- Robust motion estimation for deinterlaced video
- Precise motion estimation for PC signal
- Motion vecter filter to reduce faults of motion estimation
- Motion vector tracking for more natural moving object
- Motion vector detection for film source

Motion Compensation
  - Pixel interpolation according to motion vector
- Pixel level still area detection and preserving
- Film source sequence detection
- Inter-frame interpolation to reduce judder in film source
4:4:4 Process and 10bit Precision
  - 4:4:4 process in all data path
- 10bit precision process in all data path
- No loss of color informations
- No color smearing for PC signal
Frame Rate Conversion
  - Frame rate of output : double of input¡¯s
- Video process delay time : 2 input frame period
- Uses external SDRAM as frame buffer
Display Functions
  - CSC for brightness, contrast, hue, saturation
- Programmable output sync generation
Frame Buffer Memory
  - External SDRAM : one or two 64Mbit(32x2Mbit)
- 32 or 64-bit data width interface
Host Processor Interface
  - I2C slave : external MICOM interface
Miscellaneous
  - Auto detection of input video/sync
- Internal programmable PLLs
- SSPLL for EMI/EMC
- Built-in test pattern generation logic
Electrical and Mechanical Characteristics
  - 1.2V & 3.3V supply voltage, 5V tolerant I/O
- 256-pin HQFP package
Part Numbers
  - MFRC1000-LL-Q
