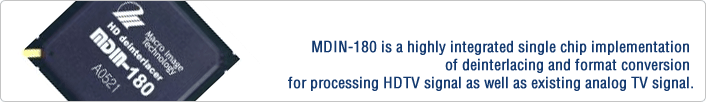

MDIN-150 | MDIN-180 | MDIN-200 | MFRC-1000 | MVDP-100     MDIN-180 is a highly integrated single chip implementation of deinterlacing and format   conversion for processing HDTV signal as well as existing analog TV signal. MDIN-180 provides Two digital video input ports for 10bit precision interlaced or   progressive scan video and One digital video output port for 10bit precision progressive scan video, and it handles both progressive and interlaced scan video. MDIN-180 receives any format of input video and performs deinterlacing and format   conversion to produce any desired format of progressive scan video with excellent signal quality preservation. MDIN-180 provides high quality edge preserving deinterlacing with up-to-date motion   adaptive 3-D deinterlacing algorithm and it performs auto detection and proper processing for fast motion and film mode video sources. MDIN-180 provides High Quality 3D Noise Reduction with motion detection. MDIN-180¡¯s high quality deinterlacing and video processing capability is suitable for   high quality display application such as DVD player, flat panel display TV, scan converter   system, especially where HDTV signal processing is required.       Two digital video input ports for 10bit precision interlaced or progressive scan video One digital video output port for 10bit precision progressive scan video Motion adaptive 3-D deinterlacing with pixel-by-pixel motion adaptive interpolation Advanced multi-directional edge preserving deinterlacing Deinterlacing with fast motion, slow motion and still image detection and processing Deinterlacing with film mode, bad-edit and subtitle detection and processing 3D noise reduction filter with cross-color suppression Independent horizontal and vertical scaling with arbitrary conversion ratio Horizontal peaking filter and color enhancement processing for crisper picture quality Programmable brightness, contrast, hue, saturation control 1 layer OSD with 16 color and 4 sprite Seamless interface to 8MB or 16MB SDRAM widely available in the market Serial I2C bus interface 256 BGA package (17mm X 17mm)       Input Format   - Two input ports : Total 40-bit configurable digital port Max. 10bit precision - Maximum pixel rate : 108Mpixel/sec - Scan type : interlaced or progressive scan video up to 1920x1080i @60Hz, 1280x1024p @60Hz - Video format : RGB, YCbCr(4:4:4), YCbCr(4:2:2), 24/30-bit, 16/20-bit and 8/10-bit digital(sync embeded) format Output Format   - One digital output port : 30-bit single width - Maximum pixel rate : 115Mpixel/sec - Scan type : progressive scan video up to 1536x1080p @60Hz - Video format : RGB, YCbCr(4:4:4), YCbCr(4:2:2), 24/30 and 16/20-bit digital(sync embeded) format Deinterlace   - Deinterlacing for any interlaced input video up to 1080i - Motion adaptive 3-D deinterlacing on a per-pixel basis - Programmable motion detection and adaptation control - Adaptive motion-weighted interpolation for eliminating non-motion artifacts - Advanced multi-directional edge preserving - Fast motion, slow motion and still image detection - Motion boundary preserving - High frequency area detection and adaptation - Film mode support for 3:2 and 2:2 pull-down - Bad-edit detection and adaptation - Programmable setting of subtitle area and artifacts elimination Noise Reduction and Cross Color Suppression   - High Quality 3D Noise Reduction with motion detection - Cross Color Suppression for CVBS video input Format Conversion   - Independent horizontal and vertical scaling - Format conversion from one format to another format with an arbitrary scaling ratio - Scaling ratio : x1/15 ~ unlimited - Programmable size & position zoom in/out Frame Rate Conversion   - Frame rate conversion from 3-250Hz to 3-250Hz - Conversion ratio : x1/31 ~ x31 - Uses external frame buffer Display Functions   - CSC for brightness, contrast, hue, saturation - Black and white level extension - Programmable output sync generation - Lock-to-input sync mode or free-run mode Display Functions   - CSC & LUT for brightness, contrast, hue, saturation and gamma control - Programmable output sync generation - Lock-to-input sync mode or free-run mode Signal Enhancement   - High order programmable horizontal peaking filter - Programmable gain control & coring - Filter for color component enhancement - LTI and CTI for edge enhancement Bitmap OSD   - One layer with 4 sprite - 16 color with blending Frame Buffer Memory   - 8MB or 16MB external SDRAM - 32-bit or 64-bit data width interface - Seamless interface to widely available x16 or x32-bit SDRAM Host Processor Interface   - I2C serial bus interface Miscellaneous   - Auto detection of input video/sync - Internal programmable PLLs - Built-in test pattern generation logic Electrical and Mechanical Characteristics   - 1.8V & 3.3V supply voltage, 5V tolerant I/O - 256-pin BGA package (17x17 mm)
