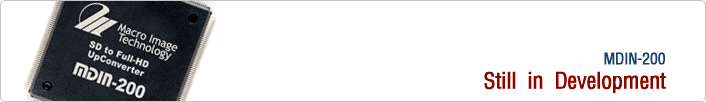

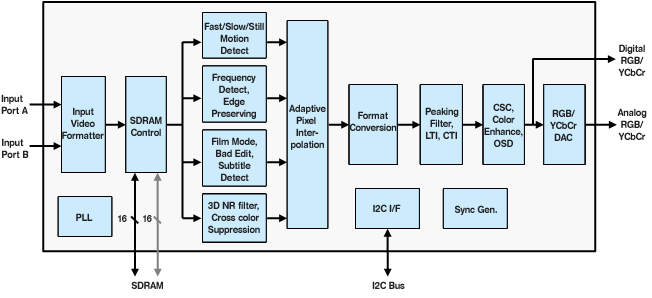

MDIN-200 is a highly integrated single chip implementation of deinterlacing, format
  conversion and video enhancement.
It converts SD video to higher resolution format, upto full-HD.
MDIN-200 provides two digital input ports and one anlalog component and digital output
  port.
It receives any format of input video and performs deinterlacing and format conversion
  to produce any desired format of progressive and interlaced scan video with excellent signal quality preservation.
MDIN-200 provides high quality edge preserving deinterlacing with the 4th generation
  motion adaptive 3-D deinterlacing algorithm and performs proper processing for fast motion and film video sources.
The Macro Image Technology¡¯s proprietary iMARV technology makes MDIN-200 the
  highest quality upconverter.
MDIN-200¡¯s high quality deinterlacing, format converting and video enhancement
  capability is suitable for digital display applications such as set-top-box, digital video recorder (DVR), DVD player, and scan converter system.

MDIN-150


Two digital video input ports for 10-bit precision interlaced or progressive scan video
Digital and analog component video output with 10-bit precision progressive or interlaced scan video
Motion adaptive 3-D deinterlacing with pixel-by-pixel level motion adaptive interpolation
Advanced multi-directional edge preserving deinterlacing
Deinterlacing with fast motion, slow motion and still image detection and processing
Deinterlacing with film mode, bad-edit and subtitle detection and processing
3D noise reduction filter with cross-color and cross-luminance suppression
Independent horizontal and vertical scaling with anti-aliasing interpolation filter
Horizontal peaking filter and color enhancement processing for crisper picture quality
Programmable brightness, contrast, hue, saturation control with adaptive contrast enhancement

1 layer OSD with 16 color and 4 sprite (bitmap and character mode)

Seamless interface to 64Mbit SDRAM (2M x 32bit or 4M x 16bit) widely available in the market
Serial I2C bus interface
144 and 176-pin QFP packages



Input Format
  - Digital format with 10-bit precision
- Maximum pixel rate : 27Mpixel/sec
- Scan type : interlaced or progressive scan video 720x480i/p @60Hz or 720x576i/p @50Hz
- Video format : YCbCr(4:2:2), ITU-R601 & 656 8/10-bit digital(sync embedded) format
Output Format
  - Digital and analog format with triple 10-bit DACs
- Maximum pixel rate : 150Mpixel/sec
- Scan type : progressive or interlaced scan video up to 1920x1080i/p @60Hz
- Video format : RGB, YCbCr(4:4:4), YCbCr(4:2:2) sync embedded or separate sync 24-bit(4:4:4) or 16/20-bit(4:2:2)   digital output
Deinterlace


- Deinterlacing for interlaced scan video
- Motion adaptive 3-D deinterlacing on a per-pixel basis
- Programmable motion detection and adaptation control
- Adaptive motion-weighted interpolation for eliminating non-motion artifacts
- Advanced multi-directional edge preserving
- Fast motion, slow motion and still image detection
- Motion boundary preserving
- High frequency area detection and adaptation
- Film mode support for 3:2 and 2:2 pull-down
- Bad-edit detection and adaptation
- Programmable setting of subtitle area and artifacts elimination
Noise Reduction and Cross Color Suppression
  - High quality 3D noise reduction with motion detection
- Cross-color and cross-luminance suppression
Format Conversion
  - Independent horizontal and vertical scaling with anti- aliasing interpolation filter
- Format conversion from one format to another format with an arbitrary scaling ratio
- Scaling ratio : x1/15 ~ unlimited
- Programmable size & position zoom in/out
Frame Rate Conversion
  - Frame rate conversion from 3-250Hz to 3-250Hz
- Conversion ratio : x1/31 ~ x31
- Uses external frame buffer
Display Functions
  - CSC for brightness, contrast, hue, saturation
- Adaptive contrast enhancement
- Programmable output sync generation
- Lock-to-input sync mode or free-run mode
Signal Enhancement
  - High order programmable horizontal peaking filter
- Programmable gain control & coring
- Filter for color component enhancement
- LTI and CTI for edge enhancement
Bitmap and character mode OSD
  - One layer with 4 sprites
- 16-color with 32-blending level
- Up to 62x62 font size, and 1-bpp or 4-bpp font color
- 32-row x 16-col or 16-row x 32-col character map
Frame Buffer Memory
  - 64Mbit external SDRAM
- 16-bit or 32-bit data width interface
Host Processor Interface
  - I2C serial bus interface
Miscellaneous
  - Auto detection of input video/sync
- Internal programmable PLLs
- Built-in test pattern generation logic
Electrical and Mechanical Characteristics
  - 1.8V & 3.3V supply voltage
- 144-pin QFP package (Analog output only)
- 176-pin QFP package (Analog and digital output)
