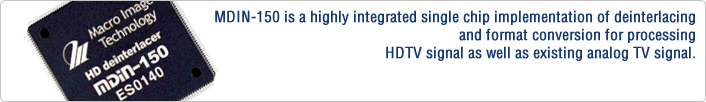

MDIN-150 is a highly integrated single chip implementation of deinterlacing and
  format conversion for processing HDTV signal as well as existing analog TV signal.
MDIN-150 provides two digital input ports and one digital output port, and it handles
  both progressive and interlaced scan video. MDIN-150 receives any format of input video and performs deinterlacing and format conversion to produce any desired format of progressive or interlaced scan video with excellent signal quality preservation.

MDIN-150 provides high quality edge preserving deinterlacing with up-to-date motion
  adaptive 3-D deinterlacing algorithm and it performs auto detection and proper processing for fast motion and film mode video sources. MDIN-150 provides format conversion capability of scale-up or scale-down with an arbitrary scaling ratio.

MDIN-150¡¯s high quality deinterlacing and video processing capability is suitable for
  high quality display application such as flat panel display TV, where HDTV signal processing is required

MDIN-150


Two digital video input ports for interlaced or progressive scan video
One digital video output port for progressive or interlaced scan video
Motion adaptive 3-D deinterlacing with pixel-by-pixel motion adaptive interpolation
Advanced multi-directional edge preserving deinterlacing
Deinterlacing with fast motion, slow motion and still image detection and processing
Deinterlacing with film mode, bad edit and caption region detection and processing
Independent horizontal and vertical scaling
Horizontal and vertical anti-aliasing filters for graceful down conversion
Advanced signal enhancement and color enhancement processing for crisper picture quality
Seamless interface to 8MB or 16MB SDRAM widely available in the market

Serial I2C bus interface

Pin-to-pin compatible with MDIN-100


Input Format
  - Two input ports : 16-bit and 24-bit digital video 24-bit input port is shared with SDRAM data bus.
- Maximum pixel rate : 135Mpixel/sec
- Scan type : interlaced or progressive scan video up to 1920x1080i @60Hz, 1280x1024p @75Hz
- Video format : RGB, YCbCr(4:4:4), YCbCr(4:2:2), 8/16-bit digital format including SMPTE274M
Output Format
  - One digital output port : 30-bit single or 60-bit dual mode
- Maximum pixel rate : 150Mpixel/sec
- Scan type : progressive or interlaced scan video up to 1920x1080p @60Hz
- Video format : RGB, YCbCr(4:4:4), YCbCr(4:2:2), 16-bit digital format including SMPTE274M
Deinterlace
  - Deinterlacing for any interlaced input video up to 1080i
- Motion adaptive 3-D deinterlacing on a per-pixel basis
- Programmable motion detection and adaptation control
- Adaptive motion-weighted interpolation for eliminating non-motion artifacts
- Advanced multi-directional edge preserving deinterlacing
- Fast motion, slow motion and still image detection
- Inter-field noise reduction
- High frequency area detection
- Film mode support for 3:2 and 2:2 pull-down mode
- Bad-edit film and caption region detection
Format Conversion
  - Independent horizontal and vertical scaling
- Format conversion from one format to another format with an arbitrary scaling ratio
- Horizontal and vertical anti-aliasing filters for graceful down conversion
- Scaling ratio : x1/15 ~ unlimited
- Programmable size & position zoom in/out
Frame Rate Conversion
  - Frame rate conversion from 3-250Hz to 3-250Hz
- Conversion ratio : x1/31 ~ x31
- Uses external frame buffer
Signal Enhancement
  - Non-linear 2-D filter
- Independent horizontal & vertical gain control
- Additional high order horizontal peaking filter
- High order filter for enhancing color component
Display Functions
  - CSC & LUT for brightness, contrast, hue, saturation and gamma control
- Programmable output sync generation
- Lock-to-input sync mode or free-run mode
Frame Buffer Memory
  - 8MB or 16MB external SDRAM
- 32-bit or 64-bit data width interface
- Seamless interface to widely available x16 or x32-bit SDRAM
Host Processor Interface
  - I2C serial bus interface
Miscellaneous
  - Auto detection of input video/sync
- Input noise reduction capability
- Internal programmable PLLs
- Built-in test pattern generation logic
Electrical and Mechanical Characteristics
  - 2.5V & 3.3V supply voltage, 5V tolerant I/O
- 256-pin QFP package


FPD(Flat Panel Display) monitor
High-end HDTV set or professional set-top-box

Equipments requiring studio quality image processing capability
